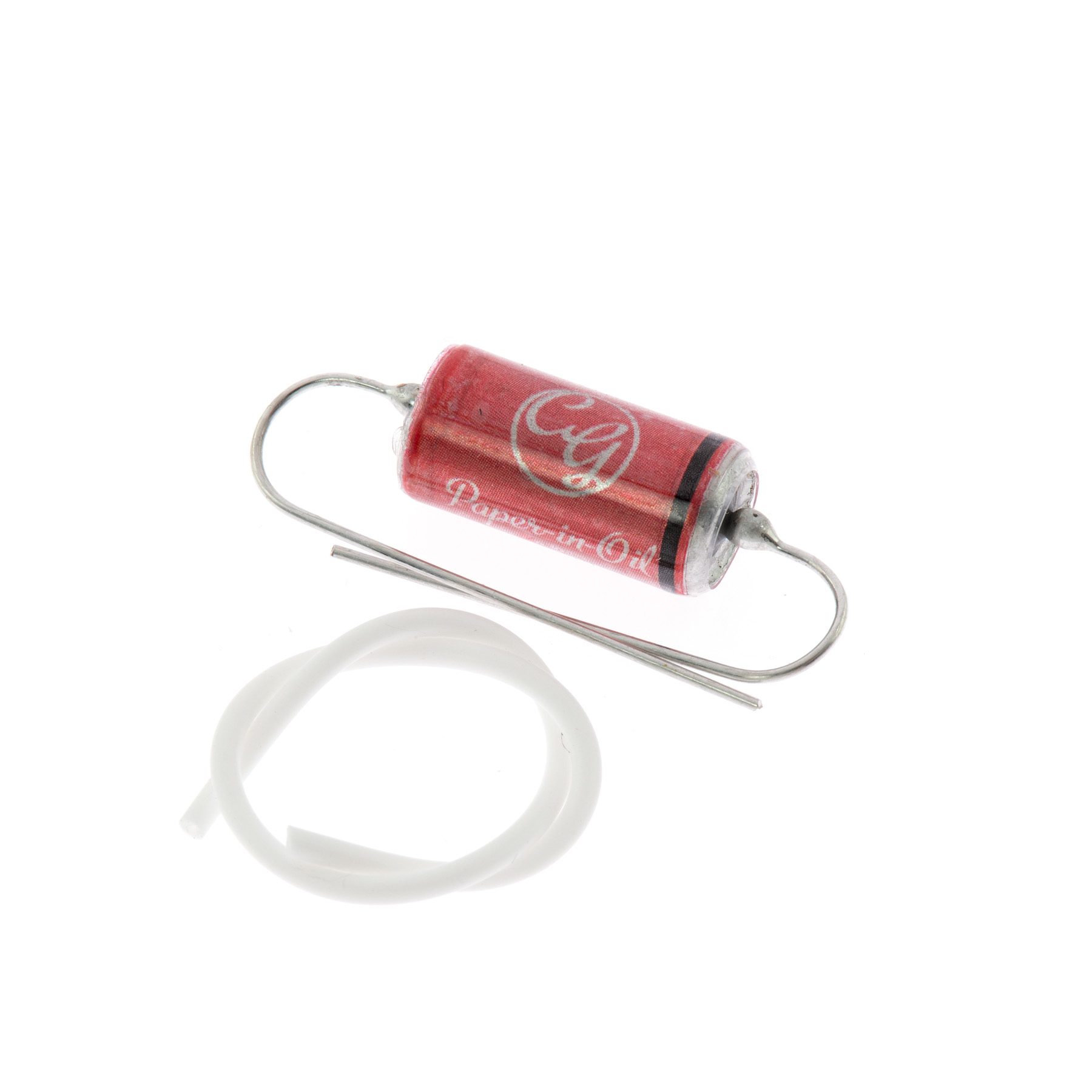

Made for us by Jupiter Condenser and based on their Comet. We worked with Jupiter to develop a warmer sounding musical capacitor. Guitar capacitors are in the circuit all the time even with the tone on 10. Paper in oil construction is one of the original and most reliable oil types.
These are a perfect size for guitar wiring as you can see from our many pre-wired kits and fit nicely into Strats, Teles, Les Pauls, SG's etc. The black band denotes the ground side though this is not relevant for guitar wiring only for amps.
Jupiter uses the finest quality highly refined USP-grade mineral oils, processed under a deep vacuum for several days. Hermetic sealing keeps oil from leaking out and provides protection from moisture to ensure long life. Glass to metal end seals are soldered in tin-plated brass tubes to form leak-tight joints. Lead outs are tin plated oxygen free copper for easy soldering.
Jupiter Aluminum Foil capacitors are built to Mil-Spec standards yet developed and refined for beautiful sound.
These are much more reliable than NOS units, made by one of the top capacitor makers in the USA, they really do not get much better than this.
Specifications:
Dimensions 21mm Long by 10mm Wide
12cm White Silicone Insulation Sleeve
Tolerance: +/- 10%
Operating Temperature: 85°C
Voltage: 600VDC
Pure Aluminum Foil
Dielectric: Paper-in-Oil
Oil Type: Mineral Oil
Leads: Tinned Oxygen Free Copper
Made in the USA of materials made in the USA.
