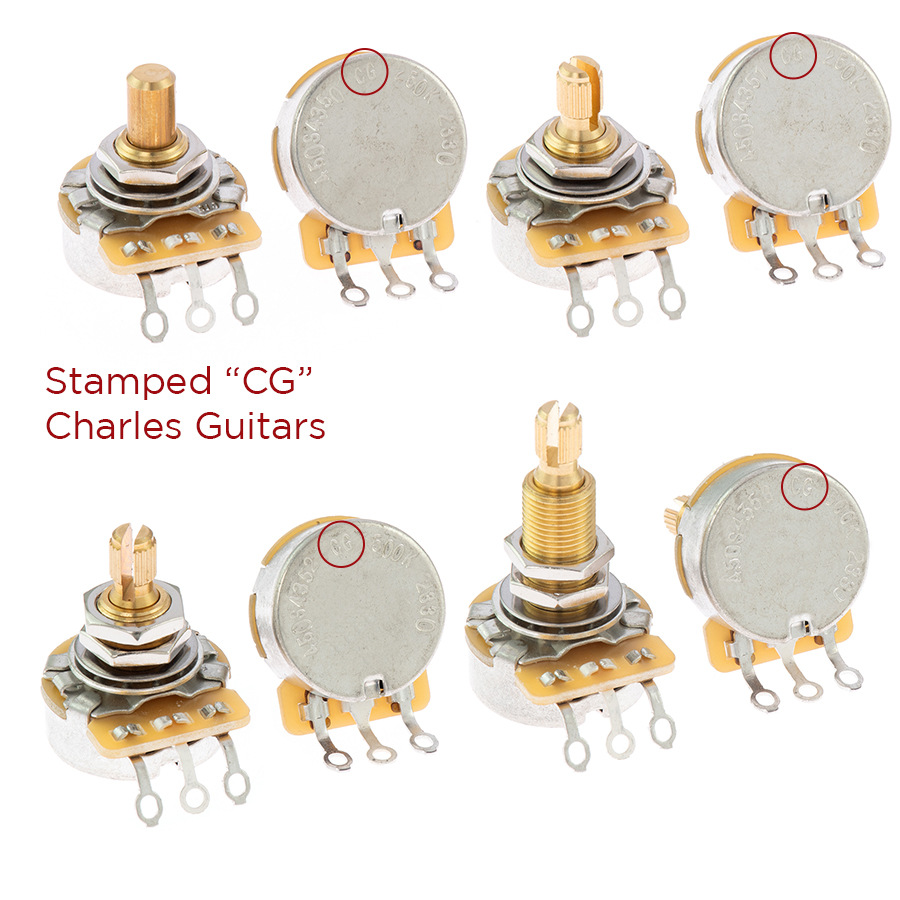

After many years we had CTS make pots especially for us. Based on the 450 series 15% B taper with brass shaft and thread and with a + - 5% tolerance and slightly higher nominal value so that the values do not drop so much from the stated value, but still marked 250K and 500K to keep the look vintage correct. The “CG” pots are audio log and suitable for volume and tone.
Features:
Logarithmic sometimes called Audio Taper or Non Linear
5% + - tolerance
Solid Brass thread and shaft
Bakelite base plate
Lowest turning torque offered by CTS for an easier smoother more responsive control.
Easy Solder
Stainless Steel Dress Washer and Nickel Plated lock washer and nuts
24 spline
USA Imperial size
For 3/8” (9.5mm) hole
Shaft diameter - 9.4mm
Base of pot diameter - 23.8mm
