This bracket is made in the USA and is suitable for most modern Gibson ES-335 and ES-175 guitars. It comes with a black ABS block with adhesive strip to fix to the pickguard. The threads on this bracket are imperial 5-40.

This 335 bracket will not fit an Epiphone Dot because the mounting hole drilled in the side is situated lower on these particular instruments. This means that none of the options available with this bracket will line up to the existing screw hole.

Please check the length of the foot that sits on the corner of the body and screws into the side of the guitar because we offer 3 variations:

• Short - 0.875" (22.22mm)
• Medium - 1.00" (25.4mm)
• Long - 1.25" (31.75mm)

These measurements are the total length of the foot.

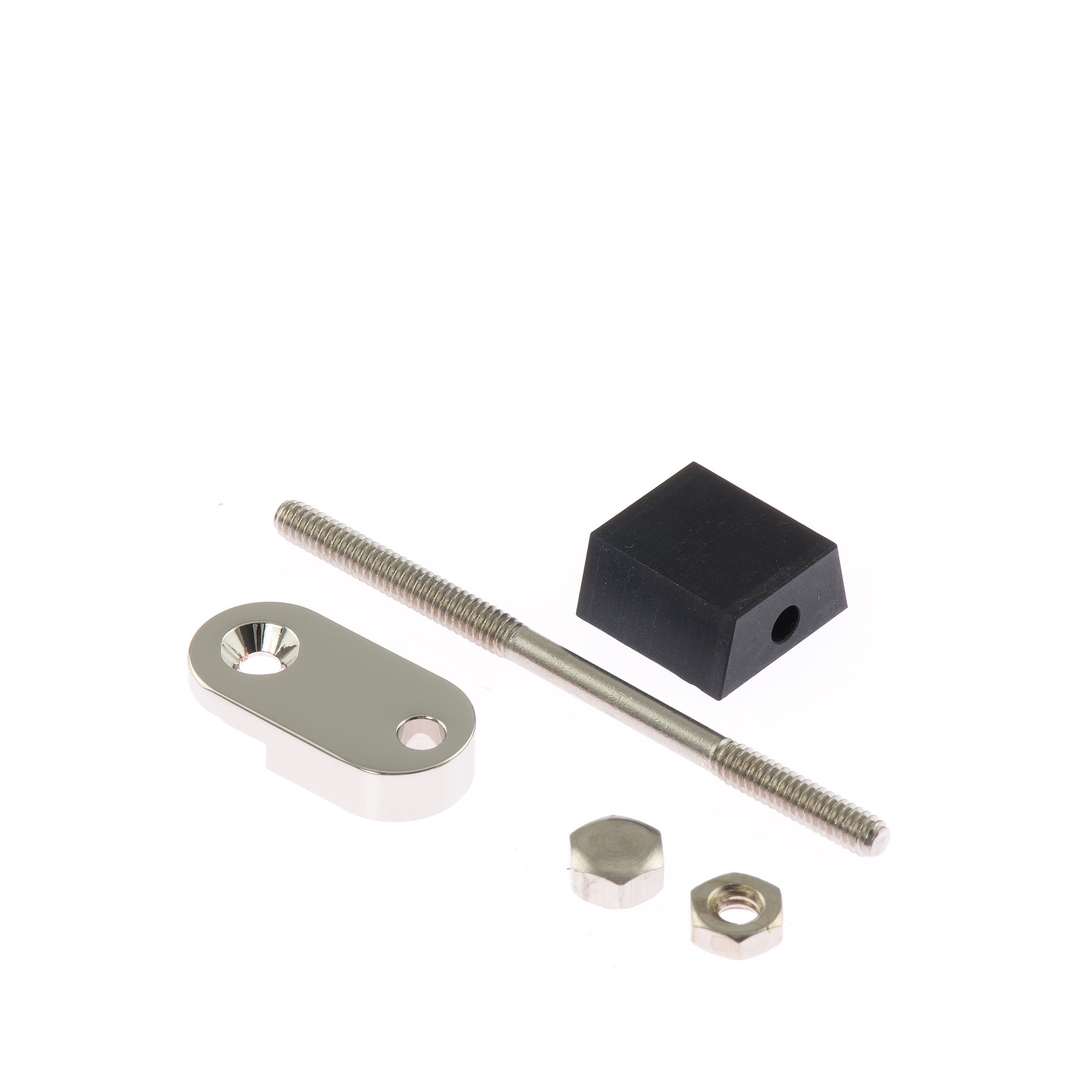

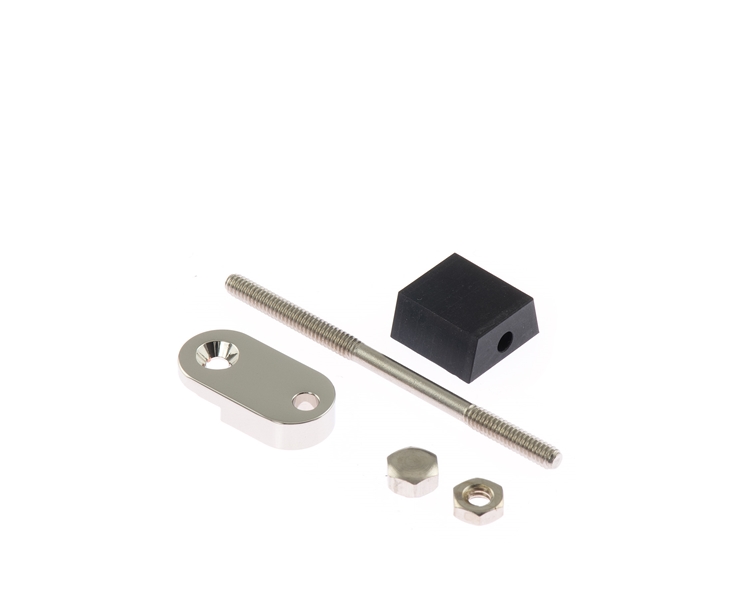

Specifications:

• ES Pickguard bracket
• 0.875'' (22.22mm) Small Foot
• 5-40 THREAD PICKGUARD BRACKET ROD
• 5-40 BLIND & Open Nut
• Riser Block with adhesive strip
• Made in the USA
• Nickel Finish
• Fits most ES-Series guitars
